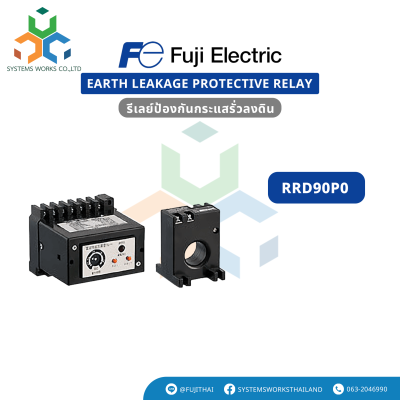

RRD90P0

รุ่น RRD90P0-1/2-V12
รุ่น RRD90P0-1/2-V24
รุ่น RRD90P0-1/2-V4
รุ่น RRD90P0-2/5-V12
รุ่น RRD90P0-2/5-V24
รุ่น RRD90P0-2/5-V4
รุ่น RRD90P0-5/10-V12
รุ่น RRD90P0-5/10-V24
รุ่น RRD90P0-5/10-V4
ยี่ห้อ Fuji Electric

รุ่น: RRD90P0-1/2-V12
Sensitive Current: 100 / 200 mA
Control Voltage: 120 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-1/2-V24
Sensitive Current: 100 / 200 mA
Control Voltage: 240 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-1/2-V4
Sensitive Current: 100 / 200 mA
Control Voltage: 415 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-2/5-V12
Sensitive Current: 200 / 500 mA
Control Voltage: 120 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-2/5-V24
Sensitive Current: 200 / 500 mA
Control Voltage: 240 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-2/5-V4
Sensitive Current: 200 / 500 mA
Control Voltage: 415 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-5/10-V12
Sensitive Current: 500 / 1000 mA
Control Voltage: 120 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-5/10-V24
Sensitive Current: 500 / 1000 mA
Control Voltage: 240 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A

รุ่น: RRD90P0-5/10-V4
Sensitive Current: 500 / 1000 mA
Control Voltage: 415 V AC
Sensor Hole: Ø90 mm
Tripping Time: 0.2 – 2 s
Rated Current (2-wire): 842 A
Rated Current (3-wire): 842 A
Rated Current (4-wire): 842 A
