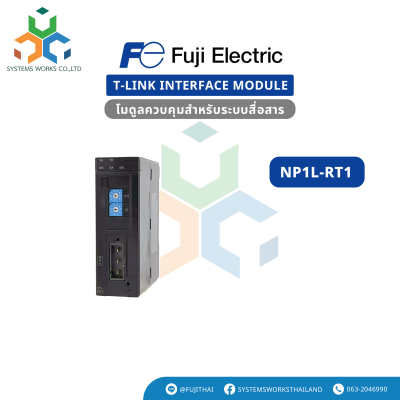

NP1L-RT1

รุ่น NP1L-RT1

ยี่ห้อ Fuji Electric

Type : T-LINK Interface Module
Application : T-LINK Slave Station สำหรับ Remote I/O System
Communication Method : Half-duplex Serial Communication
Data Exchange Method : 1:N Polling / Selecting Method
Transmission Speed : 500 kbps
Transmission Line Form : Bus Configuration (Multi-drop)
Transmission Cable : Shielded Twist Pair Cable
Maximum Transmission Distance : 1000 m
Optical Transmission : Quartz GI Cable (ต้องใช้ Optical Connector FNC160A-C20)
Error Check : FCS (X¹⁶ + X¹² + X⁵ + 1)
Maximum I/O Points (Normal Mode) : 2048 Points (128 Words)
Maximum I/O Points (Extension Mode / I/O Extension Mode) : 8192 Points (512 Words)
Maximum Message Length : 220 Bytes
Power Supply : 24 VDC
Current Consumption : 140 mA หรือน้อยกว่า
Weight (Module) : ประมาณ 200 g

Restricted I/O Modules :
NP1X3206-A
NP1Y32T09P1-A
NP1AX08-MR
NP1AX08V-MR
NP1AX08I-MR
